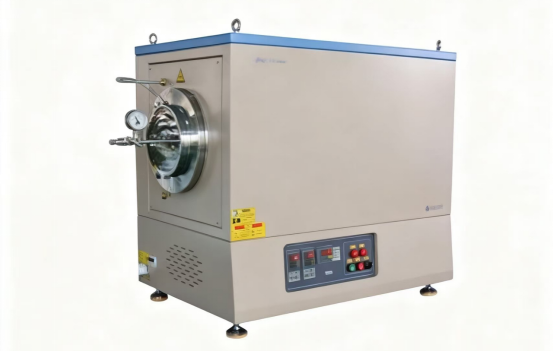

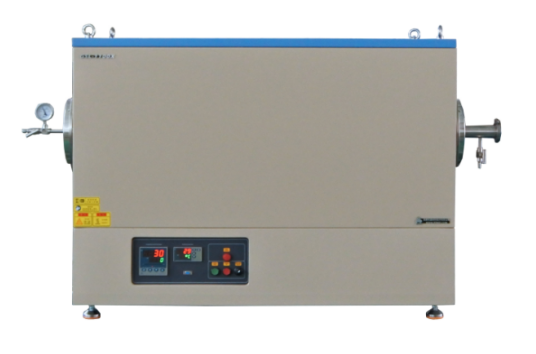

Four tubulaire à double zone de température 1100℃
1. Le four tubulaire à double zone de chauffage est équipé de trois spécifications de tubes de four 6"/8,5"/11", qui peuvent répondre à différentes tailles d'échantillons et exigences de processus.
2. Le four tubulaire à double zone de chauffage utilise des matériaux d'isolation thermique réfractaires de haute qualité, qui présentent une excellente stabilité de température et une excellente efficacité énergétique.
3. Le four tubulaire à double zone de chauffage convient au recuit à gradient de matériau, au frittage segmenté, aux réactions chimiques en plusieurs étapes, au prétraitement des poudres métalliques, au dopage des semi-conducteurs et à d'autres applications. Il permet une commutation rapide entre atmosphères sous vide et atmosphère inerte.
- Shenyang Kejing
- Shenyang, Chine
- 10 jours ouvrables
- 50 ensembles
- information
Introduction of dual heating zone tube furnace:

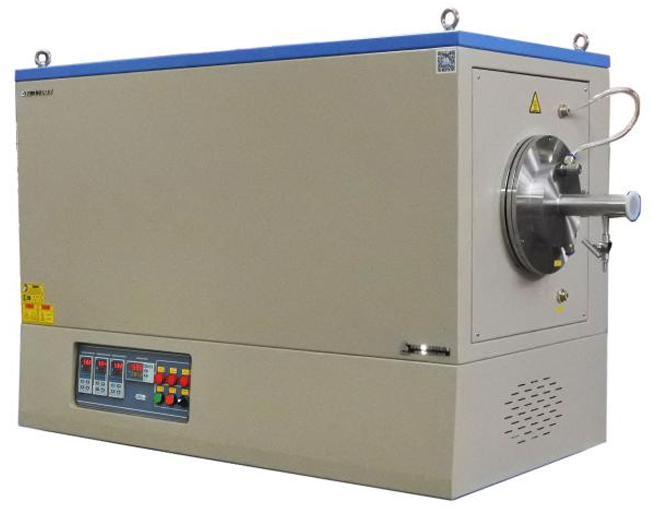

GSL-1100X-I/II/III-6dddhhh/8.5dddhhh/11dddhhh-S dual heating zone tube furnace is a large-caliber tube furnace with hinged stainless steel sealing flanges installed at both ends of the furnace tube. Dual heating zone tube furnace can be widely used for heat treatment such as sintering or annealing of materials in a vacuum or atmosphere protected environment. The Max temperature of the dual heating zone tube furnace can reach 1100℃, and a 50-stage temperature lifting program can be set, with a temperature control accuracy of ±1℃.
Technical parameters of dual heating zone tube furnace:
| Product Name | GSL-1100X-I/II/III-6″/8.5″/11″-S 1100℃ Dual Temperature Zone Tubular Furnace |
| Furnace Body Structure | · Dual heating zone tube furnace adopts a double-layer shell structure and has an air cooling system · The dual heating zone split tube furnace is equipped with 2 alumina pipe plugs. When the dual heating zone split tube furnace is used, the pipe must be clogged into both ends of the furnace pipe (to ensure the sealing of the constant temperature zone and the sealing ring) · High-purity alumina fiber as the furnace material (the surface is coated with high-temperature alumina coating, which can improve the heating efficiency and extend the service life of the furnace) · This furnace can be used as an annealing or diffusion furnace, Max can place 8dddhhh wafers on the corresponding quartz boat (quartz boat size is optional) |
| Basic Parameters | · Power supply: AC 220V 50HZ · Power: 8KW · Temperature: 1000℃ (1100℃<1h) · Recommended heating rate: ≤10℃/min · Thermocouple: double K type (one of which is a temperature inspector) · Heating element: ferromolybdenum-chromium aluminum alloy · Heating zone length: 600mm (single temperature zone: 600mm; double temperature zone: 300+300mm; three temperature zone: 200+200+200mm) · Furnace tube size: φ6dddhhh*1020mm/φ8.5dddhhh*1020mm/φ11dddhhh*1020mm |
| Sealing Flange | · Dual heating zone split tube furnace is sealed with hinged flange and O-ring seal · The water-cooled flange on the left side includes a vacuum pressure gauge, a stainless steel needle valve and a 1/4dddhhh pagoda nozzle joint. The water-cooled flange on the right side: KF40 vacuum interface, which is convenient to connect to the bellows, pumps and KF40 baffle valves used by KF40 (If your pump is a KF25 interface, you need to be equipped with a KF40 to KF25 adapter, which can be purchased from our company) · A set of temperature test devices (armored thermocouple, compensation wire and temperature meter) can be purchased to test the temperature inside the furnace tube |
| Temperature Control System | · Dual heating zone split tube furnace includes a YD858P type temperature controller. · PID automatic temperature control system. · Intelligent 50-segment programmable control. · Temperature control accuracy: ±1℃. · Each temperature zone is controlled by an independent temperature control system. · Default DB9 PC communication connection port. · Passed MET certification. · Optional computer temperature control software (for YD858P series controllers) is used to control the heating curve and export data. |
| Dimensions of Dual Heating Zone Split Tube Furnace | 1880mm（L）*700mm（W）*930mm（H） |
| The Weight of the Dual Heating Zone Split Tube Furnace | About 200kg |
| Warranty of Dual Heating Zone Split Tube Furnace | Dual heating zone split tube furnace provides a one-year warranty and lifetime maintenance Special note： 1. Consumables such as heating elements, quartz tubes, sample crucibles, etc. are not included 2. Damage caused by the use of corrosive and acid gases is not covered by the warranty |
| Certification of Dual Heating Zone Split Tube Furnace | · Dual heating zone high pressure tube furnace has passed CE certification · Certificate number: M.2021.206.C67998 |
| Compliance | CE Certified, UL or CSA certification is available at extra cost. |
Why choose dual heating zone high pressure tube furnace:
1. The dual heating zone high pressure tube furnace's dual-temperature zone design supports simultaneous comparative experiments or gradient temperature fields, which significantly improves R&D efficiency and shortens R&D cycles.
2. Dual heating zone high pressure tube furnace has a variety of furnace tube specifications to choose from, and one device can meet the needs of different stages from small laboratory tests to pilot amplification.
3. Dual heating zone high pressure tube furnace has excellent temperature field uniformity, and intelligent program temperature control can also ensure process repeatability. The high-quality thermal insulation materials used in dual heating zone high pressure tube furnace can effectively reduce energy consumption and achieve stable and reliable long-term operation.
4. The dual heating zone high pressure tube furnace's dual-temperature zone configuration supports more complex process paths, which can provide more possibilities for the development of new materials.
